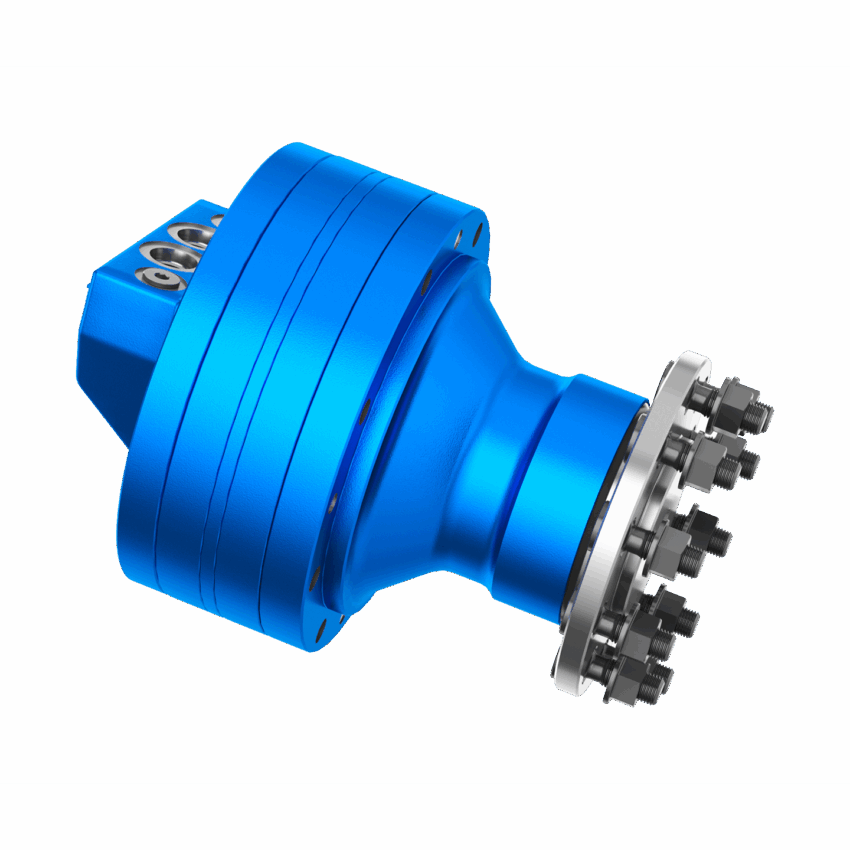

The XF04 is a versatile motor in our XF range, designed for efficient performance across various applications. This is a modular design radial piston cam motor, offering displacements from 300 to 680 cc/rev and a maximum pressure of 420 bar.
The XF04 is available with SAE or Metric ‘G’ port options and incorporates a Pintle valve arrangement that eliminates axial force, along with a unique trapezoidal cam profile that ensures smooth torque characteristics.
Delivering reliable power, the XF04 offers specific torque values from 4.8 to 10.8 Nm/bar and supports a maximum continuous power output of up to 36 kW. This motor is well-suited for applications in the construction, agriculture, and forestry industries.
