XJ05

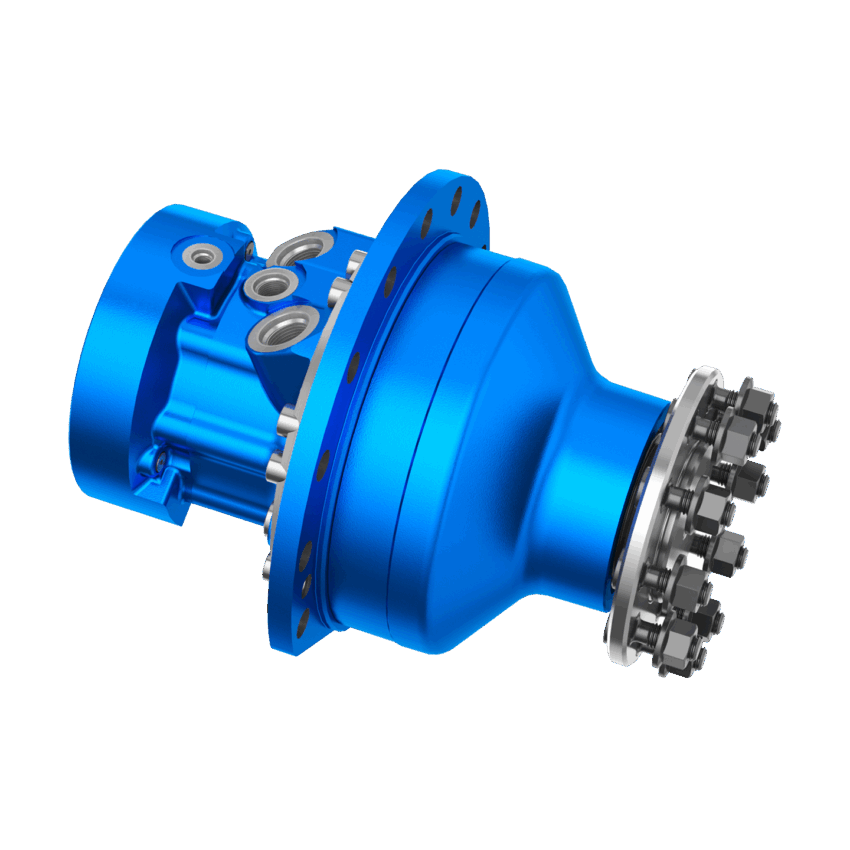

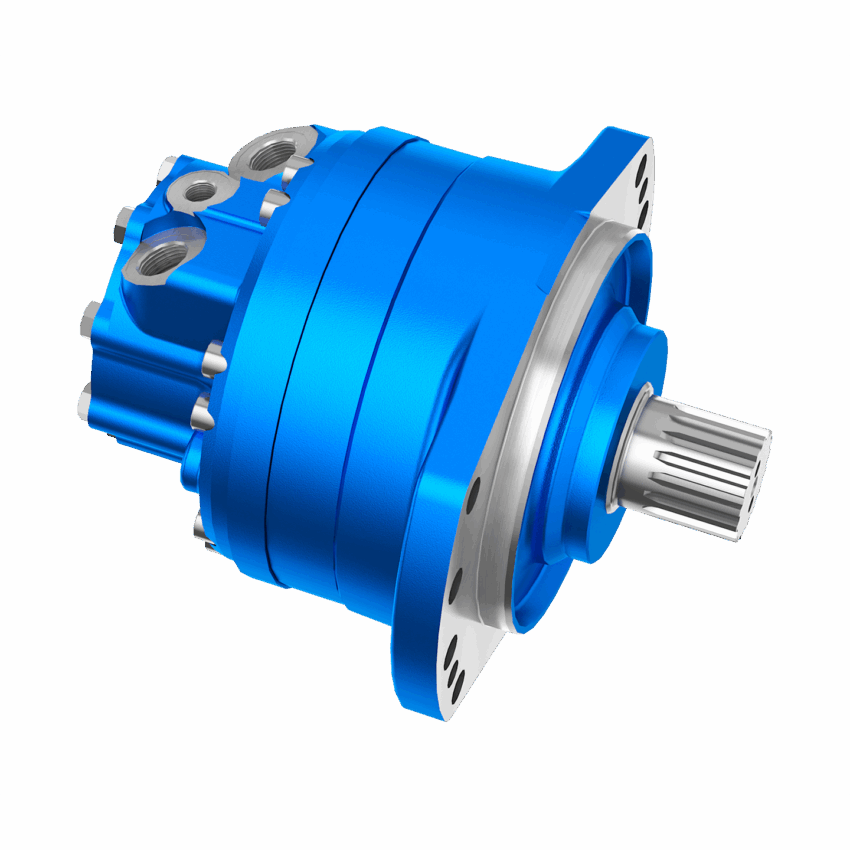

Radial Piston Motor
The XJ05 is the smallest model in our XJ motor range, and is a modular design radial piston cam motor, offering displacement from 260cc/rev to 820cc/rev as well as a maximum pressure of 450 bar. The XJ05 comes with a single or two speed valve option, robust face valve arrangements and SAE or Metric ‘G’ port options. This is a compact and efficient drive solution that seamlessly integrates with a variety of industries with applications in construction, forestry, mobile and tool drives.
Product Specifications
Technical Specifications
| Nominal Displacement (cc/rev) | 380 | 430 | 470 | 520 | 570 |
|---|---|---|---|---|---|
| Geometric Displacement (cc/rev) | 376 | 425 | 472 | 519 | 565 |
| Specific Torque (Nm/bar) | 5.98 | 6.76 | 7.51 | 8.26 | 8.99 |
| Max Pressure (bar)* | 450 | 450 | 450 | 450 | 450 |
| Max Cont. Speed - 1 Displacement (rpm) | 265 | 250 | 240 | 220 | 200 |
| Max Cont. Speed - 2 Displacement (rpm) | 265 | 250 | 240 | 220 | 200 |
| Max Cont. Power (kW) | 29 | 29 | 29 | 29 | 29 |
| Min viscosity (cSt) | 15 | ||||
| Max viscosity (cSt) | 2000 | ||||
| Optimal viscosity operating range (cSt) | 35-200 | ||||
| Fluid type min requirements | HL;HLP to Din 51524 | ||||
| Fluid cleanliness | NAS 1638 Class 9 ISO code 18/15 | ||||
| Min fluid operating temp (°C) | -30 Nitrile - 20 Viton | ||||
| Max fluid operating temp (°C) | Plus 80 | ||||
| Optimum temperature range (°C) | +40 to +70 | ||||
| Frame Diameter | 225mm | ||||
| Approx Weight | 44kg | ||||
| Nominal Displacement (in3/rev) | 23 | 26 | 29 | 32 | 35 |
|---|---|---|---|---|---|
| Geometric Displacement (in3/rev) | 22.9 | 25.9 | 28.8 | 31.7 | 34.5 |
| Specific Torque (lb.ft/1000 psi) | 304 | 344 | 382 | 420 | 457 |
| Max Pressure (psi)* | 6527 | 6527 | 6527 | 6527 | 6527 |
| Max Cont. Speed - 1 Displacement (rpm) | 475 | 420 | 385 | 350 | 320 |
| Max Cont. Speed - 2 Displacement (rpm) | 570 | 500 | 465 | 420 | 385 |
| Max Cont. Power (HP) | 39 | 39 | 39 | 39 | 39 |
| Min viscosity (cSt) | 15 | ||||
| Max viscosity (cSt) | 2000 | ||||
| Optimal viscosity operating range (cSt) | 35-200 | ||||
| Fluid type min requirements | HL;HLP to Din 51524 | ||||
| Fluid cleanliness | NAS 1638 Class 9 ISO code 18/15 | ||||
| Min fluid operating temp (°F) | -22 Nitrile - 4 Viton | ||||
| Max fluid operating temp (°F) | Plus 176 | ||||
| Optimum temperature range (°F) | +104 to +158 | ||||
| Frame Diameter | 8.86in | ||||
| Approx Weight | 97lb | ||||
