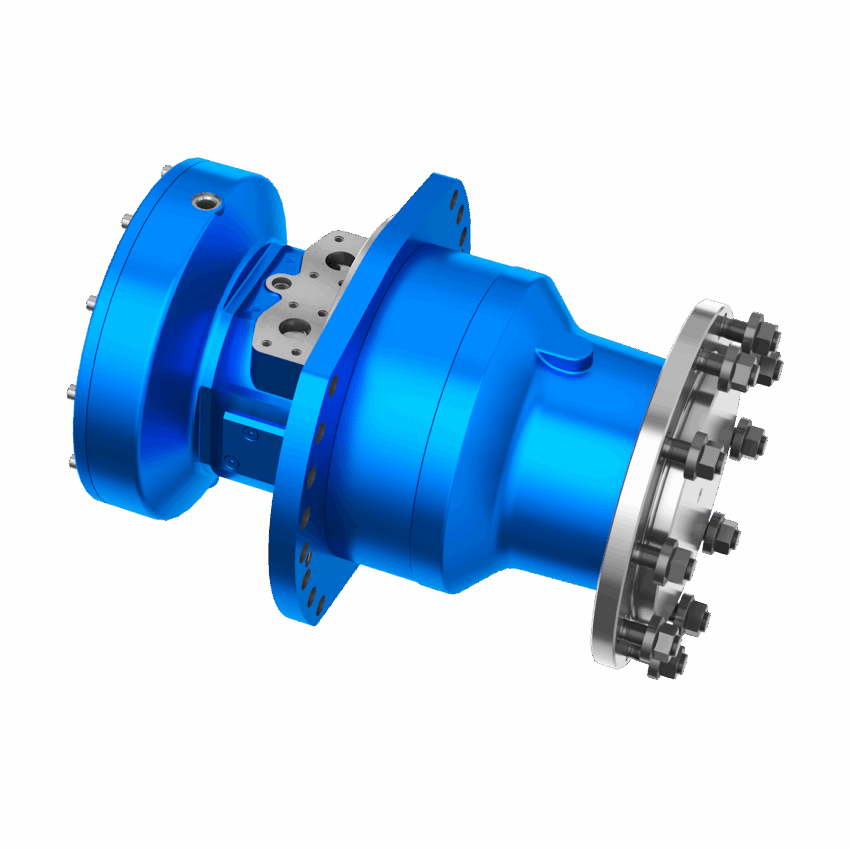

The XJ40 is a robust modular design radial piston cam motor in our XJ range, engineered for more demanding applications. With displacements from 3,332 cc/rev to 5,010 cc/rev and a maximum pressure of 450 bar, the XJ40 offers powerful performance.
It features a durable face valve arrangement and is available with single or two-speed valve options, as well as optional parking brake, speed, and/or directional sensing. The XJ40 provides specific torque values from 53.0 to 79.7 Nm/bar and maintains a maximum continuous power output of 110 kW. Its robust and reliable drive is ideal for demanding applications across industrial, construction, agricultural, mobile, and marine sectors.
