SMA Motor

With a robust, hydrostatically balanced design, the SMA radial piston motor is built for heavy-duty applications. It handles high mechanical and hydraulic shock loads, delivering continuous high power and long service life. The SMA motor range is available in standard, high power and industrial versions, with pressure ratings up to 490 bar.

Download the SMA Range Catalogue
SMA 0480

SMA 0480

Displacement:
200 - 480 cc
Torque:
3.2 - 7.6 Nm/bar
Max Continuous Power:
126 KW
Max Pressure:
450 bar
Max Speed:
1,000 rpm
SMA 0500

SMA 0500

Displacement:
500 - 500 cc
Torque:
8.0 - 8.0 Nm/bar
Max Continuous Power:
101 KW
Max Pressure:
450 bar
Max Speed:
700 rpm

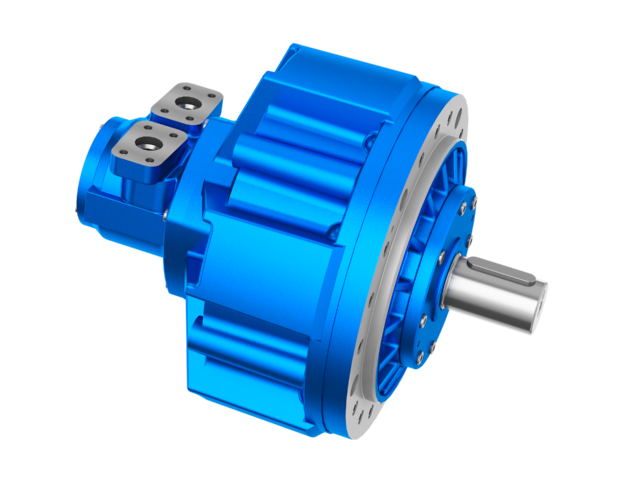

SMA 1230

SMA 1230

Displacement:
750 - 1,230 cc
Torque:
11.9 - 19.6 Nm/bar
Max Continuous Power:
221 KW
Max Pressure:
450 bar
Max Speed:
485 rpm
SMA 2200

SMA 2200

Displacement:
1,340 - 2,200 cc
Torque:
21.3 - 35.0 Nm/bar
Max Continuous Power:
271 KW
Max Pressure:
450 bar
Max Speed:
406 rpm
SMA 3200

SMA 3200

Displacement:
2,000 - 3,200 cc
Torque:
31.8 - 50.9 Nm/bar
Max Continuous Power:
355 KW
Max Pressure:
450 bar
Max Speed:
380 rpm
SMA 4350

SMA 4350

Displacement:
3,500 - 4,350 cc
Torque:
55.7 - 69.2 Nm/bar
Max Continuous Power:
304 KW
Max Pressure:
450 bar
Max Speed:
240 rpm
SMA 8700

SMA 8700

Displacement:
7,000 - 8,700 cc
Torque:
111.4 - 137.4 Nm/bar
Max Continuous Power:
608 KW
Max Pressure:
450 bar
Max Speed:
240 rpm
SMA 10L

SMA 10L

Displacement:
7,400 - 10,500 cc
Torque:
115.8 - 167.1 Nm/bar
Max Continuous Power:
443 KW
Max Pressure:
450 bar
Max Speed:
180 rpm
SMA 16L

SMA 16L

Displacement:
13,000 - 16,000 cc
Torque:
206.9 - 254.7 Nm/bar
Max Continuous Power:
900 KW
Max Pressure:
450 bar
Max Speed:
65 rpm
