C Series Pumps

The C Range Chemical Metering Pump is of axial piston, swash plate design. The robust running gear is optimised for the needs of pumping Polyol and Isocyanates.

Download the C Range catalogue
C04

C04

Fixed displacement:
6.0 cc/rev
Speed Range:
200-1800 rpm
TDI Fluids:
210 bar
MDI & Polyol fluids:
250 bar
Max Inlet Pressure:
20 bar
Weight:
18 kg
C07

C07

Fixed displacement:
11.5 cc/rev
Speed Range:
200-1800 rpm
Max Outlet Pressure:
20 bar
TDI Fluids:
210 bar
MDI & Polyol fluids:
250 bar
Weight:
20 kg

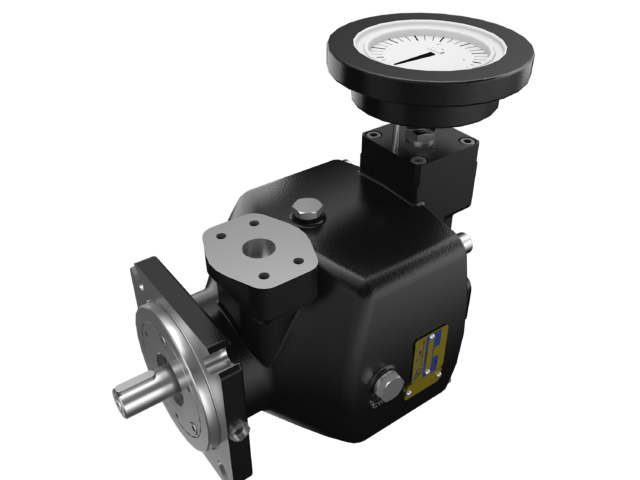

C20

C20

Fixed displacement:
33.0 cc/rev
Speed Range:
200-1800 rpm
TDI Fluids:
210 bar
MDI & Polyol fluids:
250 bar
Max Inlet Pressure:
20 bar
Weight:
30 kg
C38

C38

Fixed displacement:
62.0 cc/rev
Speed Range:
200-1800 rpm
TDI Fluids:
210 bar
MDI & Polyol fluids:
250 bar
Max Inlet Pressure:
20 bar
Weight:
40 kg

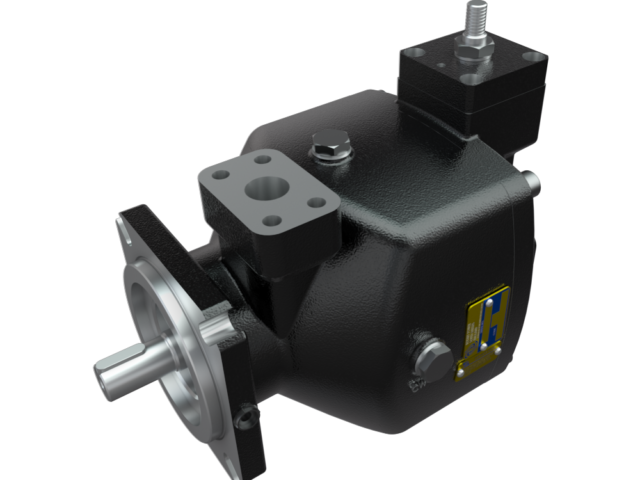

C01

C01

Fixed displacement:
2.0 cc/rev
Speed Range:
200-1800 rpm
TDI Fluids:
210 bar
MDI & Polyol fluids:
250 bar
Max Inlet Pressure:
20 bar
Weight:
16 kg
