Rock Crusher

XJ05

XJ05

Radial Piston Motor

Find out more
Displacement:
260 - 750 cc
Torque:
4.1 - 11.9 Nm/bar
Max Continuous Power:
29 KW
Max Pressure:
450 bar
Max Speed:
300 rpm
XJ08

XJ08

Radial Piston Motor

Find out more
Displacement:
467 - 1,248 cc
Torque:
7.4 - 19.9 Nm/bar
Max Continuous Power:
55 KW
Max Pressure:
450 bar
Max Speed:
225 rpm

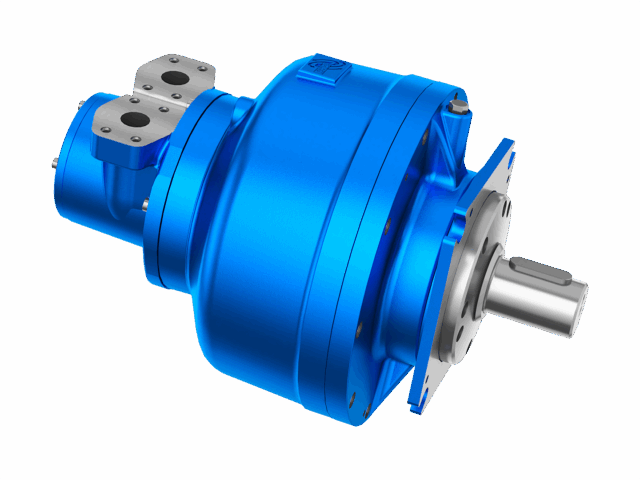

SMA Series

SMA Series

Radial Piston Motor

Find out more
Displacement:
209 - 16,400 cc
Torque:
3.33 - 261 Nm/bar
Max Continuous Power:
900 KW
Max Pressure:
450 bar
Max Speed:
125 - 480 rpm

Overview

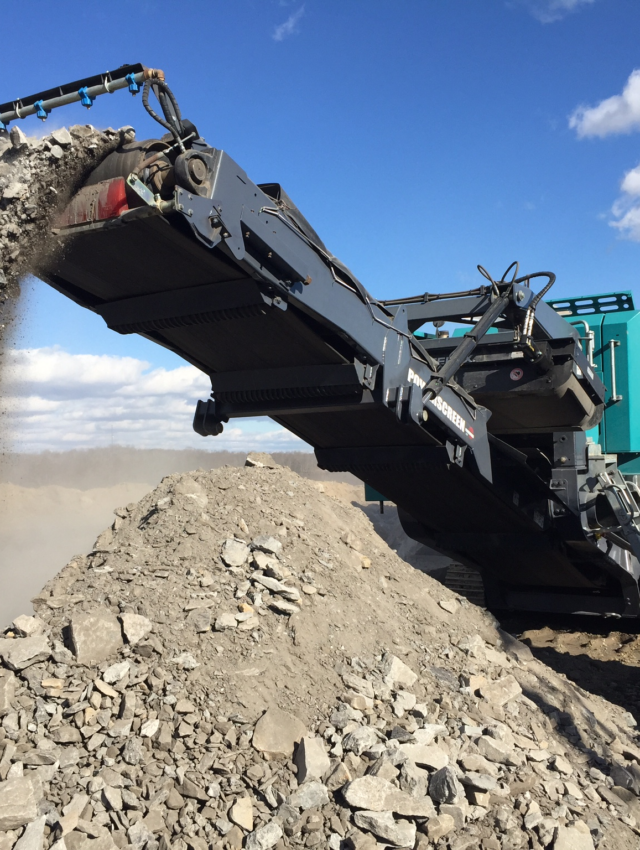

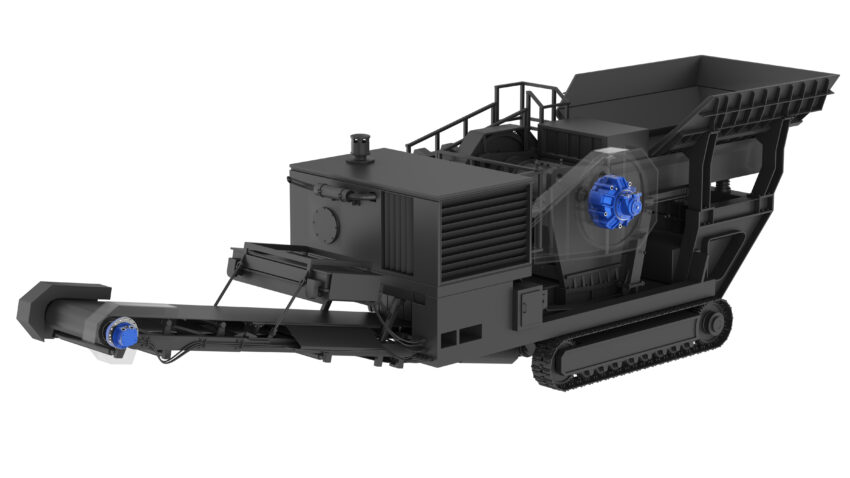

Rotary Power motors provide the power behind both the conveyor and drum drives in heavy-duty rock crushers.

What does it take to keep rock crushers performing under constant load in the toughest environments?

Rotary Power motors are engineered to deliver the strength, control and reliability required to power both conveyor and drum drives in heavy duty rock crushing applications, where durability and consistent performance are critical.

Designed for demanding conditions, the XJ Series provides smooth, controlled power to conveyor systems, ensuring efficient material handling and continuous operation. With a maximum continuous power of 900 kW, these motors deliver the capability needed to maintain performance under sustained load.

Built to withstand harsh operating environments, Rotary Power motors ensure dependable performance in heavy duty crushing applications, keeping material moving and operations running with confidence.

Enquire now

Motors for this application

XJ05

XJ05

Radial Piston Motor

XJ08

XJ08

Radial Piston Motor

SMA Series

SMA Series

Radial Piston Motor
