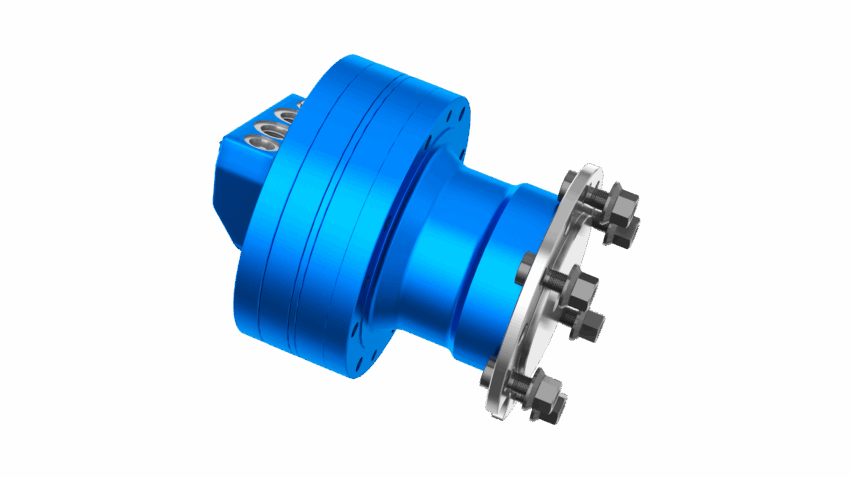

The XF10 is a high-performance radial piston motor, designed for applications requiring greater power and efficiency. This modular design radial piston cam motor offers displacements from 780 to 1,360 cc/rev and operates at a maximum pressure of 420 bar. It is available with SAE or Metric ‘G’ port options. The motor features a Pintle valve arrangement that eliminates axial force, and a unique trapezoidal cam profile that ensures smooth torque characteristics.
Built for reliable and robust performance, the XF10 delivers specific torque values from 12.5 to 21.7 Nm/bar and maintains a maximum continuous power output of 60 kW. It is well-suited for applications in the construction, agriculture, and forestry industries.
