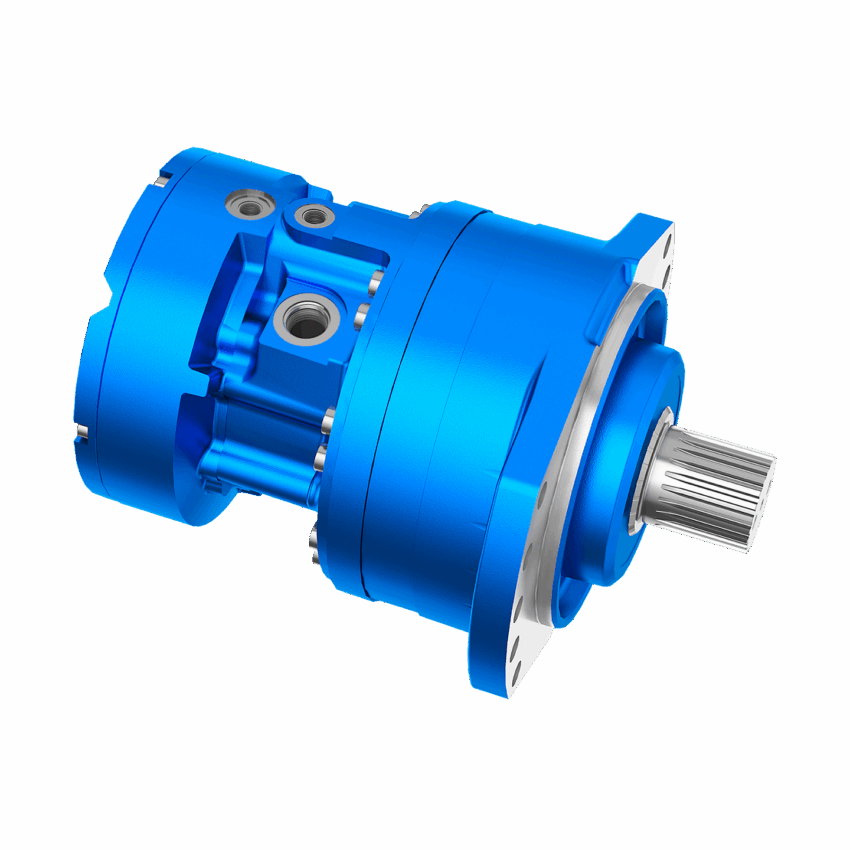

XJ08

Radial Piston Motor

The XJ motor range offers a truly modular multi-lobe cam motor design with a wide variety of standard options to suit multiple drive systems. Developed from over 25 years of cam motor experience, the XJ cam motor range offers displacements of 260cc to 5010cc/rev.

Product Specifications

Displacement:
467-1248 cc
Specific torque:
7.4-19.9 Nm/bar
Continuous Power:
41 kW
Max Pressure:
450 bar
Max Speed:
225-100 rpm
